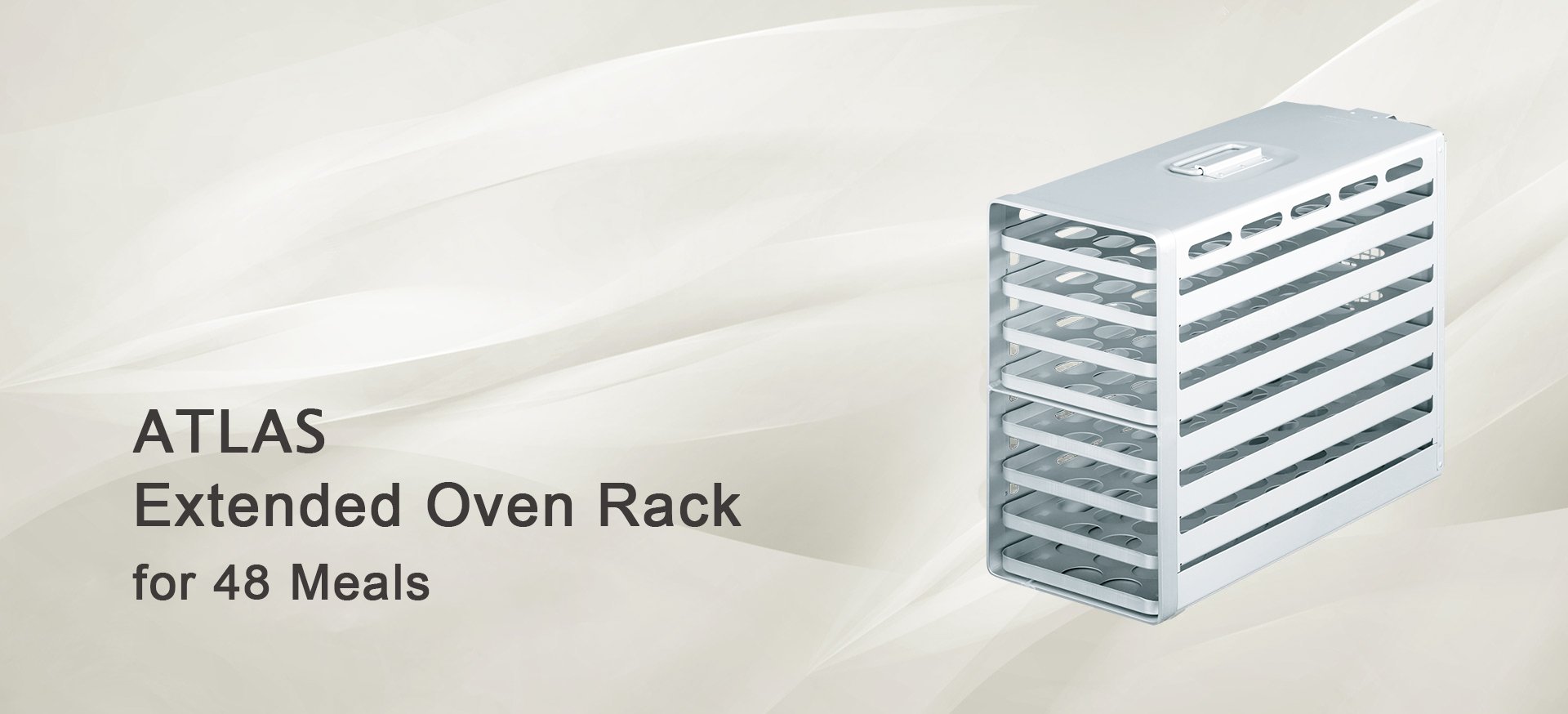

ATLAS Extended Oven Rack( for 48 meals)
Standard ATLAS Oven Rack is designed to hold 32 meals to be heated in an ATLAS oven for meal service onboard. The oven rack is equipped with 8 standard aluminum trays (also called aluminum skids) which can be ordered together with oven racks or be ordered as a separate item.
Technical Specifications
| Material: | Aluminum |
| Weight: | 2.5 kg / 5.5 lb |
| Part Number: | R80004-A01 |
| Remarks: | ATLAS extended for 48 meals. Tray size: 495x213x15.5 |
Features and Options
- Embossed or engraved logo
- Logo plate
- Anodized
Download PDF

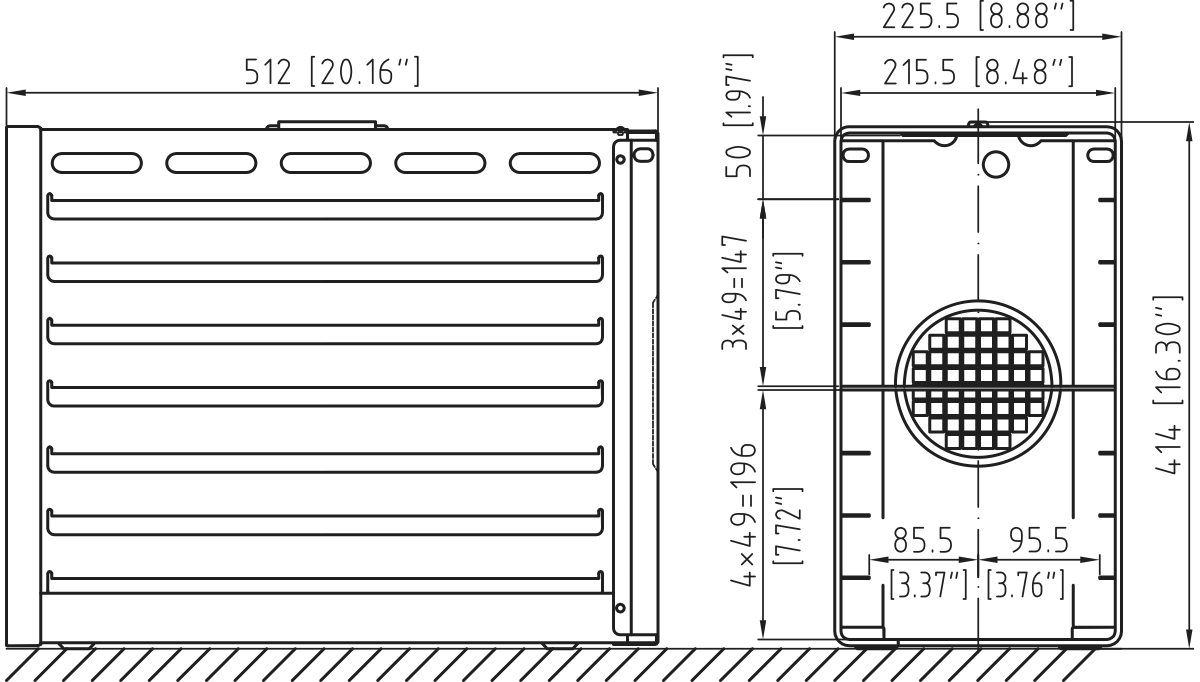

ATLAS Extended Oven Rack( for 48 meals)Drawing for ATLAS Extended Oven Rack( for 48 meals)
